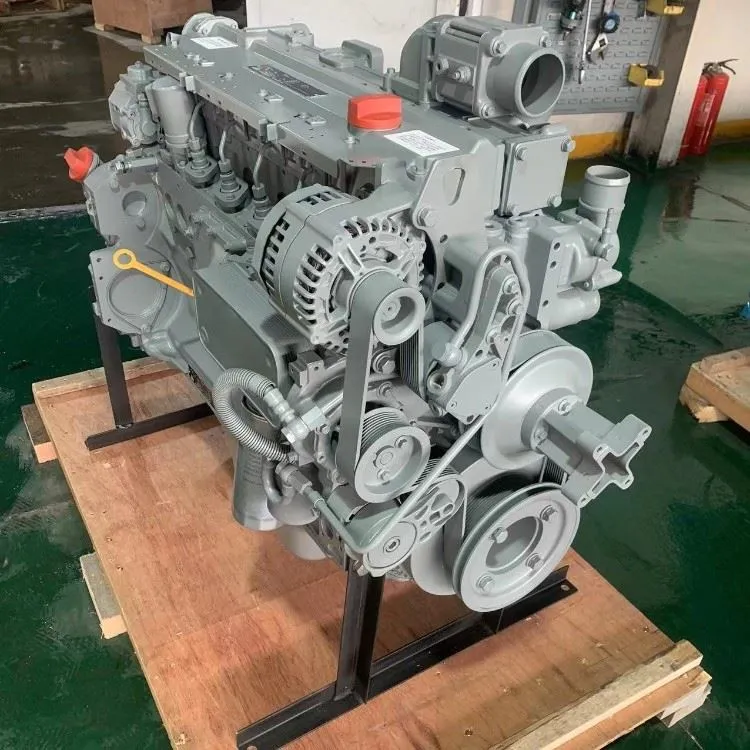

Deutz BF6M2012C diesel engine – Original from Deutz Dalian Joint Venture Plant, fully Deutz technology, product line and genuine quality Deutz engine.
The Deutz BF6M2012C diesel engineis water cooled 6-cylinder in-line engine.Displacement 1.0 liters per cylinder.Compact design, high power-to-volume-ratio.Turbocharging and turbocharging with charge air cooling.High-pressure fuel injection up to 1600 bar.Electronic engine governor with diagnostic facilities with CAN-Bus optional.Three separate mounting options for gear-driven hydraulic pumps.Easy accessible service points on one engine side.User-friendly maintenance design.Wedge ribbed belt drive with automatic belt tensioner optional.The engine complies with the latest emission standards and can effectively control the generation of emissions. It adopts advanced emission control technology, including exhaust gas recirculation system and particulate trap, to reduce the negative impact on the environment.
General Informationi
Model: BF6M2012C
Type: 6 Cylinders in Line
Displacement: 6.06 L
Bore * Stroke: 101*126
Net Weight (with flywheel & alternator): 509 Kg
Overall Dimension: 998mm*628mm*920mm
Performance Data
Rated Power/Speed: 147 kW
Rated Speed: 2500 rpm
Max Torque/Speed: 743 N.m @ 1500 rpm
Min Fuel Consumption @ Full Load: 202 g/Kw.h
Idle Speed: 800 rpm
Mean Piston Speed: 10.5 m/s
Technical Specification
Certification: Euro II
Aspiration: Turbocharged & Charge Air Cooler
Fuel System: Electronic Unit Pump
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Cooling Method: Water Cooled
Compression Radio: 19:1
