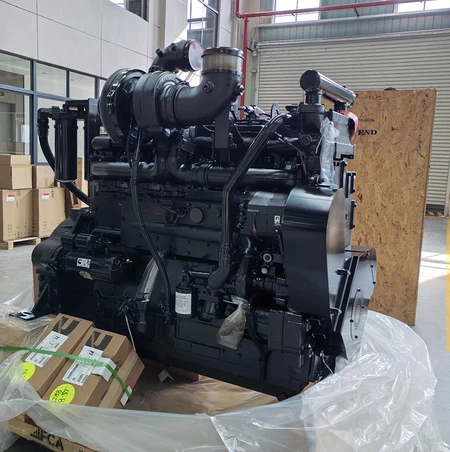

The QSK19-C760 engine is a power core custom-designed by Chongqing Cummins specifically for XCMG's large mining excavators. It is adapted to the stringent requirements of all mining scenarios, providing stable and efficient power support for this model. It is the core guarantee for the XCMG XE1150 to perform heavy-duty operations such as open-pit mining stripping, ore excavation, and material loading, perfectly aligning with XCMG's product positioning of "high efficiency, durability, and strong adaptability" in mining equipment.
I. Basic parameters
Model and type
QSK19-C760 belongs to the Cummins K19 series diesel engine, which adopts a four-stroke, inline six-cylinder design.
Classification: non-road machinery engine, suitable for construction machinery (such as excavators, mining cars), generator sets, etc.
Performance parameters
Rated power: 560kW (about 760 horsepower); there is also a Chongqing Cummins K19 series model with the same displacement of 890kW (about 1210 horsepower)
Speed: Rated speed 2200r/min
Emission standard: Meets Euro III/National III emission standards
Cooling method: Water cooling
Fuel type: Diesel, compression ignition
Structural parameters
Number of cylinders: 6 cylinders in-line
Displacement: 19L
Weight: about 1838kg
This engine adopts a 6-cylinder inline layout, a 19.0L displacement, a rated power of 760 horsepower (567kW), and a maximum torque of 3084 N·m. The power output is strong and smooth, precisely matching the operating speed and digging force requirements of the XCMG XE1150 excavator. It can efficiently cooperate with the machine to complete heavy-duty mining, large-scale mining truck loading, and other operations, significantly improving the efficiency of mining operations.
Designed to address the harsh working environment of mines, characterized by high dust levels, high intensity, and frequent start-stop cycles, the engine features optimized structural design and protective performance. It employs a high-strength alloy cylinder block, integrated cylinder head, and a dual-stage filtration system to effectively resist dust corrosion, reduce the failure rate, extend service life and maintenance cycles, and minimize equipment downtime.
The engine is equipped with a modular common rail fuel system, resulting in low fuel consumption. Balancing economic efficiency and environmental friendliness in mining operations, it strictly meets the Stage III emission requirements for non-road applications, achieving low-pollution emissions without the need for complex aftertreatment devices. Furthermore, it is compatible with the XCMG XE1150 engine control system, enabling real-time monitoring of operating parameters, fault warnings, and convenient maintenance. This comprehensive approach fully adapts to the actual operational needs of mining, helping to improve both economic efficiency and operational safety.
