The QSX15 Agricultural Motor uses Cummins' proven technology to meet EPA Tier 4 Interim and EU Stage IIIB low-emission standards. The QSX15 motor is rated at 400 – 600 hp (298 – 447 kW) and can improve fuel efficiency by 5%, thereby reducing operating costs and increasing profitability.

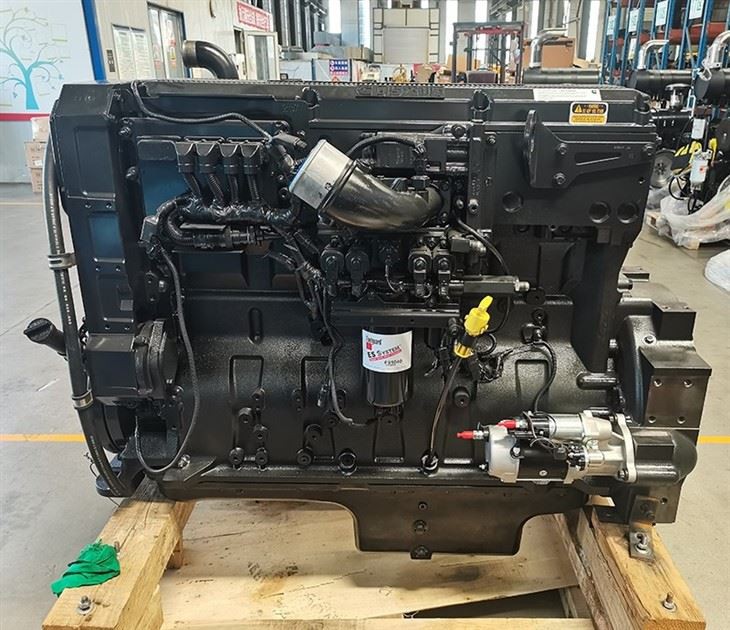

Cummins QSX15 Agricultural Motor
FEATURE 01
Strong power and convenient handling
FEATURE 02
Effectively reduce agricultural production costs
FEATURE 03
Intelligence and reliability
Core Parameters
Model: QSX15
Displacement: 15 liters
Power: 400 hp (298 kW) @1900 rpm
Maximum Torque: 2200 N·m (@1500 rpm)
Technical Highlights
Cummins DC air filtration system, which has a 35% smaller installation size than radial air filters, higher filtration efficiency, and a crankcase ventilation system equipped with a high-efficiency coalescing filter. The turbocharger (Holset HX40) has a twin-scroll design to ensure power stability in the hypoxic environment of the plateau, strengthen the crankshaft and connecting rod structure, and withstand frequent start-stop and vibration conditions.
Optimized for agricultural scenarios
PTO (power output shaft) efficiency ≥ 98%, ensuring efficient transmission of agricultural machinery. The dustproof seal design reduces the entry of straw and dust into the engine compartment.
The QSX15 agricultural motor has become the power benchmark for modern agricultural machinery through its three core advantages of low fuel consumption, high reliability, and all-terrain adaptability. Whether it is large-scale planting on the plains or special operations in the plateau mountains, it can provide long-lasting and stable power support to help increase agricultural production and efficiency.
