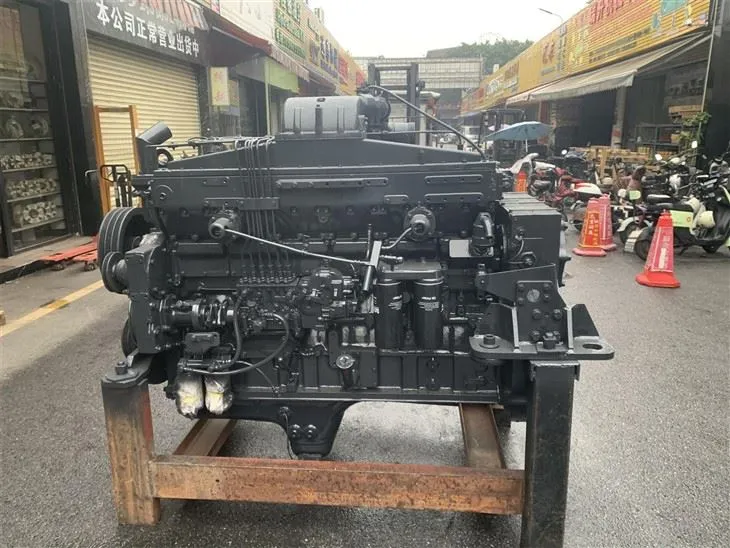

Komatsu SAA6D114E - 3 is a 4-stroke, water-cooled engine. It adopts direct injection, turbocharging and air-cooled intercooler intake. This design can effectively increase the engine's intake volume, thereby increasing the engine's power and torque, enabling it to provide strong power output under various complex working conditions.
Rated power: 170kW
Displacement ： 5.88L
Engine oil replacement volume: 37L
Fuel tank capacity : 400L
Structural features
Intake and exhaust system: It is composed of valve timing gear, camshaft, push rod, rocker arm, rocker arm shaft, intake and exhaust valves, valve spring, valve guide sleeve, air filter, turbocharger, muffler, intercooler, etc. The number of teeth on the camshaft gear is twice that of the crankshaft gear, and it is driven to rotate through the gear transmission system. The early opening and late closing of the intake valve, as well as the early opening and late closing of the exhaust valve, are all to better ensure the intake and exhaust effects. The turbocharger uses the power of exhaust gas to send high-density air to the cylinder, and the intercooler is used to cool the supercharged air to increase the density of the air entering the combustion chamber. The air filter purifies the air through filter paper, the vacuum valve can automatically discharge dust particles in the dust box, and the dust indicator is used to remind the driver to clean or replace the air filter element.
