Product parameters
Engine type: vertical, water-cooled, 4-stroke diesel engine
Number of cylinders: 3
Cylinder diameter: 67.0mm
Stroke: 73.6mm
Total displacement: 0.778L
Compression ratio: 24:1
Rated power: 14.1kW (18.9hp)
Rated speed: 3200rpm
Maximum speed: 3800rpm
Idle speed: 900-1000rpm
Direction of rotation: counterclockwise (from the flywheel end)
Ignition order: 1-2-3
Products Description

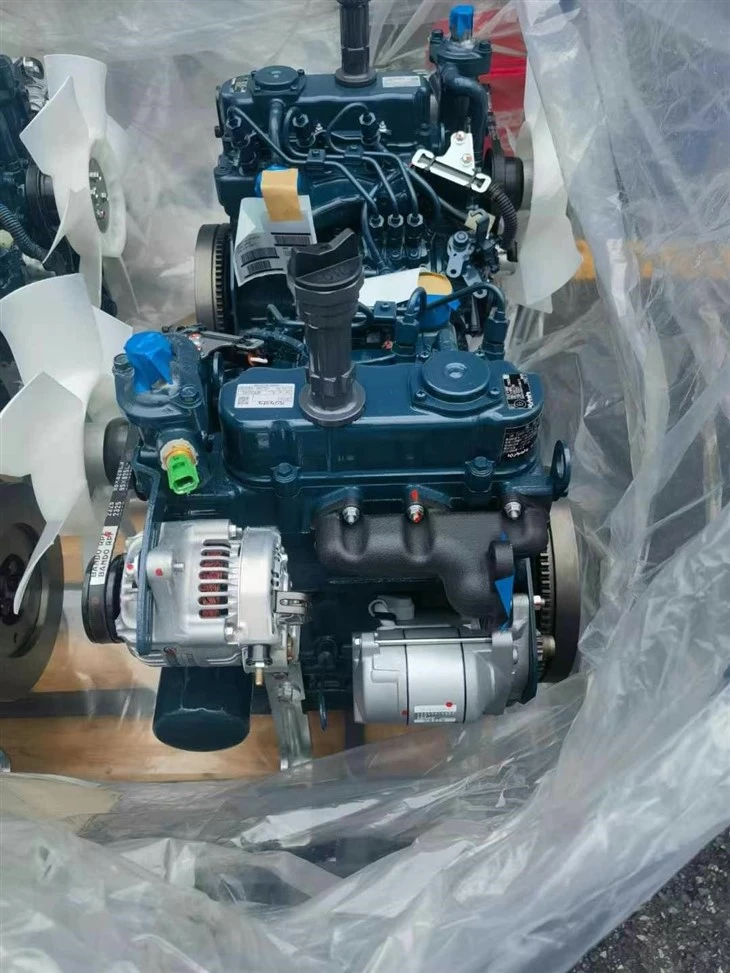

Kubota D782 Diesel Engine is a three-cylinder water-cooled diesel engine with excellent performance. Although it is a three-cylinder engine, D782 can output a maximum power of 18.9hp. It has excellent power performance among small engines and can meet the power requirements of a variety of small equipment.
The spherical combustion chamber (E-TV CS) is used with a glow plug to make combustion more complete, improve fuel utilization, and reduce fuel consumption and emissions.
Equipped with a Bosch MD mini fuel injection pump and a Bosch "throttle" type fuel injector, the injection pressure can reach 13.73-14.70MPa, which can accurately control the fuel injection amount and injection time to ensure the power output and fuel economy of the engine.
Forced lubrication is adopted, and the cycloid pump provides lubricating oil. The full-flow paper filter can effectively filter impurities in the engine oil to ensure good lubrication and heat dissipation of various engine components.
Water cooling is adopted, and the coolant circulates in the engine through the water pump to take away the heat generated by the engine and ensure that the engine works within the normal temperature range.
