Weichai series generator set technical parameters
|
Unit Type: |
silent type |
|
Output Power: |
50KW |
|
Output voltage: |
400V / 230V |
|
Rated frequency: |
50Hz |
|
Rated speed: |
1500rpm |
Structural design and features

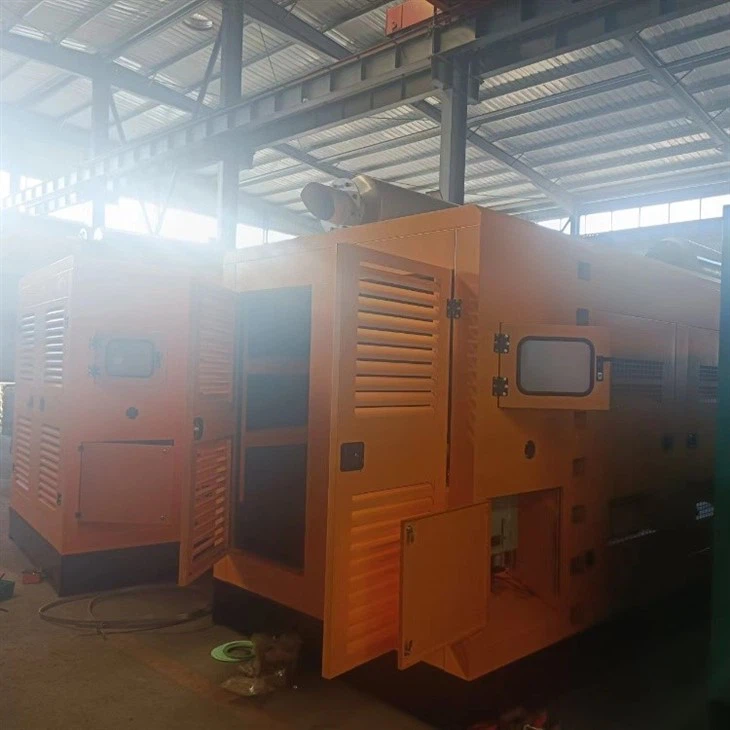

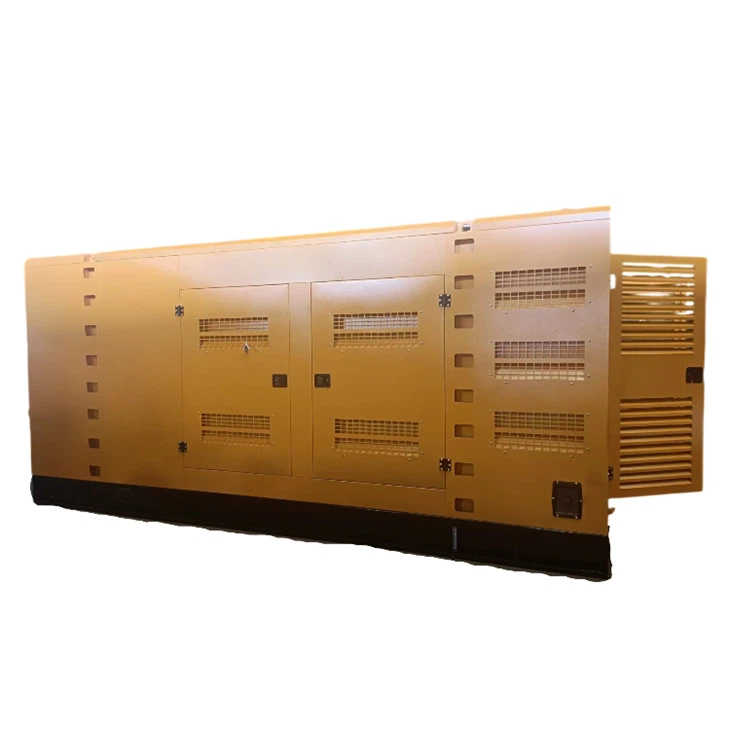

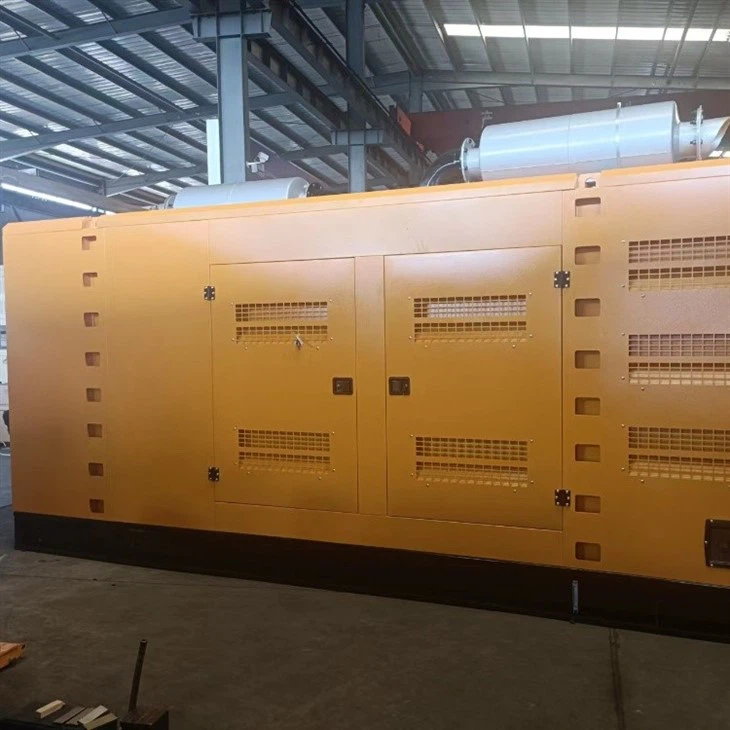

The 50kW 62.5kVA soundproof diesel generator set is a commonly used backup power supply. It features a silent enclosure with internal soundproofing and mufflers, effectively reducing operating noise to approximately 70-75dB. It also includes protections for low oil pressure, high water temperature, overspeed, and overcurrent, effectively protecting the unit from damage and enhancing its reliability and stability.
Basic Parameters
Rated power: 50kW.
Rated capacity: 62.5kVA.
Rated current: 90A.
Rated frequency: 50Hz.
Rated voltage: 400V/230V.
Power factor: 0.8 (lagging).
Start-up time: 5-6s.
Engine Specifications:
Brand and Model: Weichai WP4.1D66E200
Number of Cylinders: 4
Cylinder Arrangement: In-line
Displacement: 4.087L
Bore × Stroke: 105 × 118mm
Compression Ratio: 17.5:1
Rated Speed: 1500 rpm
Starting Battery Voltage: 24V DC
Intake: Turbocharged
Fuel System: Direct Injection
Fuel Consumption at 100% Load: 225g/kWh
Unit Performance Features
Quiet Design: The unit features a silent enclosure with internal soundproofing and mufflers, effectively reducing operating noise to approximately 70-75dB.
Comprehensive Protection: Features protection against low oil pressure, high water temperature, overspeed, and overcurrent, effectively protecting the unit from damage and enhancing its reliability and stability.
Automatic Control: Some units are equipped with an intelligent control module, enabling automatic start and stop, fault alarms, and other functions. Remote control and monitoring are also possible via a remote monitoring system.
Adaptable: The unit can adapt to diverse environmental conditions and operate normally in ambient temperatures ranging from -20°C to 40°C.
